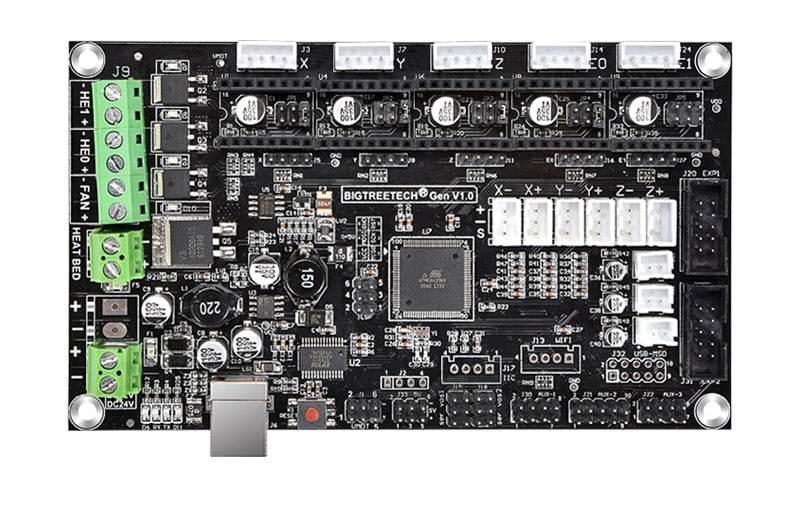

BIGTREETECH GEN V1.0 Controller board 4 layers MKS Gen V1.4 Support TMC2130 V1.1/A4988/DRV8825 Drivers
Brand Name: BIQU
Place of Origin: Guangdong China(Mainland)
Model Number: BIGTREETECH GEN V1.0
Item Type: Motherboard
Product name: BIGTREETECH GEN V1.0
Usage for: 3D printer
Lead Time: In stock
Output: 12V / 24V
Support Stepper Motor Drivers: A4988 DRV8825 TMC2100 TMC2208 TMC2130
Compatible With: 2004LCD/ 12864LCD/ TFT3.5
1. Arduino MEGA compatible Atmega2560 and FT232 processors are compatible with all RAMPS class firmware.
2. Firmware can use the same configuration as ramps1.4.
3. Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board.
4. Easy connect MKS TFT on AUX-1.
5. All extra pins broken out the same as ramps1.4(AUX-1,AUX-2,AUX-3,Servos1)
3x temperature ADC connectors for thermistors up to 5 motor driver with easy micro stepping setup (micro switches) 4x PWM capable power mosfet outputs with voltage selector for MainPower.(Bed,Extruder0,Extruder1, Fans)
4 layers PCB, optimize heat dissipation.
3*5V output, 3*12V output interface.
6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax
Recoverable fuse for short-circuit protection.
TMC2130-V1.1 is a new module that is optimized and upgraded to solve the problem that older drivers cannot choose to use the SPI working mode.
SPI working mode of TMC2130-v1.1 can directly select driver current, driver subdivision and other parameters through firmware, which makes these parameters more accurate.Using sequexternal sequencers, it can greatly reduce the workload of the chip and effectively avoid problems such as running deviation, losting step and fault caused by the overload of the chip.
This module is similar to TMC2100, which will generate a lot of heat energy when it working. Therefore, heat sink and heat dissipation fan must be added to cool it down during the use, which reduce the occurrence of losting steps and running deviation)
Know more TMC2130 V1.1 SPI, please refer to: https://www.biqu.equipment/collections/control-board/products/biqu-bigtreetech-tmc2100-2208-2130-v1-0-stepstick-mks-stepper-motor-driver-ultra-silent
About TMC2130, its row master needle color has yellow and black. We will send it at random. Thank you!
